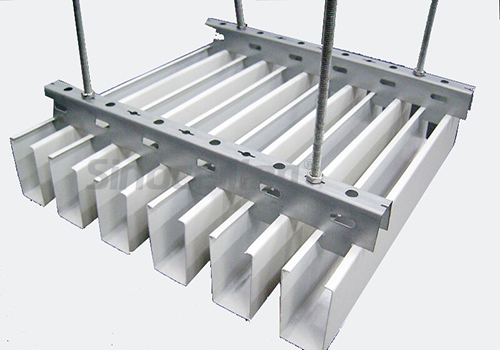

U shaped aluminum baffle ceiling system, also called screen aluminum celing, can adjust the visual height of the house, and can hide all the pipes and other facilities at the bottom of the floor, and also makes the sunlight entering into the room or light soft and uniform. Suspended pieces ceiling is composed of aluminum alloy plate and keel, flexible in assembly and dis-assembly. There are 75mm, 85mm, 110mm of plug-in pieces, to be fixed onto the keel with 100mm, 150mm spacing, the suspended pieces ceiling will not affect noise-absorbing of the house and the installation of facilities including fire-extinguishing sprinkler, air conditioning systems, etc., a variety of colors is available.

Specification:

Type: U shaped baffle

Thickness: 0.35mm-1.2mm

U shaped baffle:  width: 20mm-200mm;  height:20mm-200mm

Inline screen: height 75mm, 85mm, 100mm

Hook screen: height 120mm, 124mm

Vertical screen: height 100mm
